Description

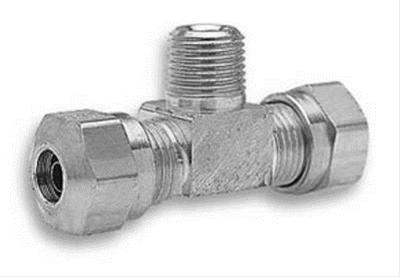

Fitting Attachment 1: Compression
Fitting Size 1: 3/16 in.
Fitting Attachment 2: Compression
Fitting Size 2: 3/16 in.
Fitting Attachment 3: Male threads
Fitting Size 3: 1/8 in. NPT
Fitting Angle: Tee
Ferrules Included: Yes
Fitting Material: Brass
Fitting Finish: Natural
Quantity: Sold individually.
Notes: These fittings are to only be used in applications where the pressure will not exceed 250 psi and are never to be used in a brake system.
Edelmann compression fittings are designed for low- and medium-pressure applications. They do not require flaring or soldering. To make a connection, place the nut and then the sleeve over the tubing, and insert the tube into the fitting body as far as possible. When the nut is tight, the wedging action of the sleeve between the body and the nut creates a secure, leak-free connection. Edelmann compression fittings are available in varieties such as male and female connectors, male and female elbows, run tees, and unions. Choose the size to fit your tubing diameter, from 1/8 in. up to 3/4 in.; pipe thread sizes also vary between 1/8 in. to 1/2 in.
