Name: Header 11619H Left Only
SKU: 741-11619HL
Availability: InStock

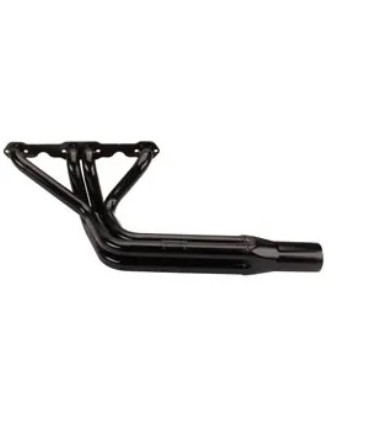

Header 11619H Left Only

$146.49

Features a square port style flange
Designed to bolt up to standard port Chevy heads
They have 1-5/8″ primaries with 3″ x 8″ collectors
Made entirely from steel with a black painted finish
These headers are designed for use with Harris, Shaw, Skyrocket, and Victory style chassis
Left Side Only

Compare

Description

Header Tube Type: Chassis

Finish: Temporary Paint

Flange Style: Standard

Primary Tube Diameter: 1-5/8″

Material Type: Steel

Color: Black

Weld-Up: No

Exhaust Port Shape: Square

Collector Diameter: 3 Inch

Collector Length: 8″

Drivers Side Dimension A: 24.00″

Drivers Side Dimension B: 13.00″

Drivers Side Dimension C: 24.00″

Passenger Side Dimension A: 14.00″

Passenger Side Dimension B: 11.00″

Passenger Side Dimension C: 33.00″

Hardware Included: Yes

Gasket(s) Included: Yes

Sold in Quantity: Left Side Only

Info

These IMCA Sport Modified headers are designed for use with Harris, Shaw, Skyrocket, and Victory style chassis. They feature 1-5/8″ primaries with 3″ x 8″ collectors and bolt to standard port Chevy heads.

1-5/8″ tube diameter
3 x 8″ collector
Standard Chevy flange
Bolts and gaskets included

Fits:

Harris
Shaw
Skyrocket
Victory

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.
