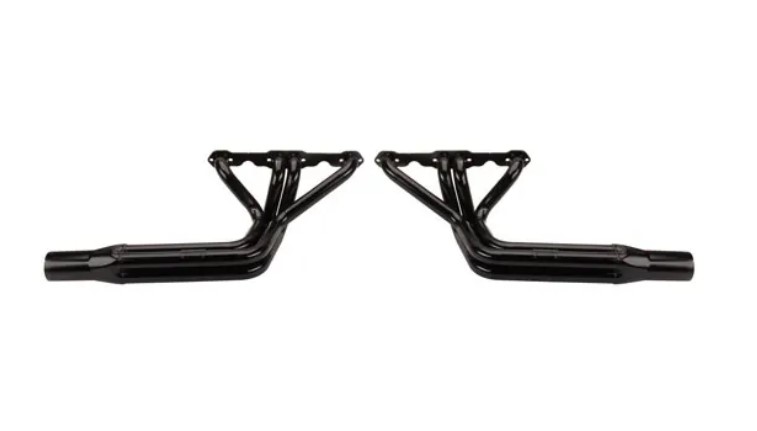

Header SBC IMCA 1 5/8″ PRI

$289.95

  • Features a square port style flange
  • Designed to bolt up to standard port Chevy heads
  • They have 1-5/8″ primaries with 3″ x 8″ collectors
  • Made entirely from steel with a black painted finish
  • These headers are designed for use with Harris, Shaw, Skyrocket, and Victory style chassis
Continue Shopping SKU: 741-11619H Categories: ,

Description

Header Tube Type: Chassis
Finish: Temporary Paint
Flange Style: Standard
Primary Tube Diameter: 1-5/8″
Material Type: Steel
Color: Black
Weld-Up: No
Exhaust Port Shape: Square
Collector Diameter: 3 Inch
Collector Length: 8″
Drivers Side Dimension A: 24.00″
Drivers Side Dimension B: 13.00″
Drivers Side Dimension C: 24.00″
Passenger Side Dimension A: 14.00″
Passenger Side Dimension B: 11.00″
Passenger Side Dimension C: 33.00″
Hardware Included: Yes
Gasket(s) Included: Yes
Sold in Quantity: Pair

Info

These IMCA Sport Modified headers are designed for use with Harris, Shaw, Skyrocket, and Victory style chassis. They feature 1-5/8″ primaries with 3″ x 8″ collectors and bolt to standard port Chevy heads.

  • 1-5/8″ tube diameter
  • 3 x 8″ collector
  • Standard Chevy flange
  • Bolts and gaskets included

Fits:

  • Harris
  • Shaw
  • Skyrocket
  • Victory

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Additional information

Weight 40 lbs
Dimensions 40 × 25 × 15 in
