Description
Header Tube Type: Chassis
Finish: Temporary Paint
Flange Style: Standard
Primary Tube Diameter: 1-5/8″
Material Type: Steel
Color: Black
Weld-Up: No
Exhaust Port Shape: Square
Collector Diameter: 3 Inch
Collector Length: 8.75″
Flange Thickness: .25″
Port Height: 1.50″
Port Width: 1.50″
Drivers Side Dimension A: 4.50″
Drivers Side Dimension B: 17.13″
Drivers Side Dimension C: 30.38″
Passenger Side Dimension A: 5.05″
Passenger Side Dimension B: 16.50″
Passenger Side Dimension C: 34.25″
Hardware Included: Yes
Gasket(s) Included: Yes
Sold in Quantity: Pair
Info

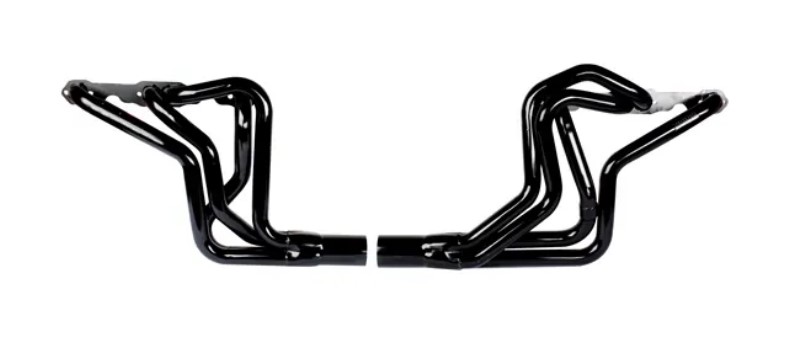

These Small Block Chevy street stock headers are for 1972-1987 Malibu, Monte Carlo, Grand Prix, Cutlass and Regal. Also fits a 1970-1981 Camaro.
- Can use solid side or rear mounts
- Clears side and rear engine mounts (motor must be in stock location)
- Will fit straight or angle plug heads
- Will not clear stock manual clutch linkage ball or air condition box
- Must use short oil filter such as WIX 51069, AC PF24, or FRAM PH30
Notes
The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.
