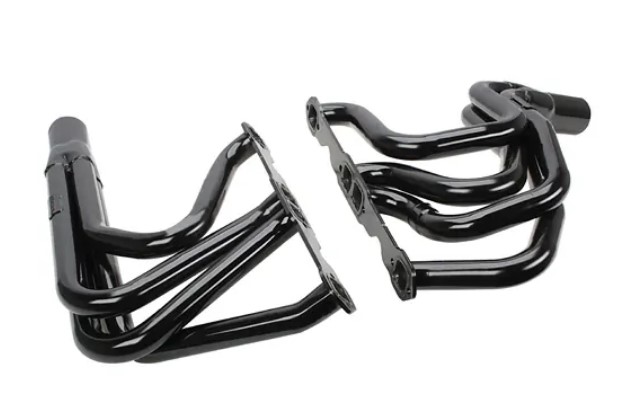

Header SBC IMCA 1 5/8″ Long PRI

$289.95



  • The longer primaries offer maximum torque and horsepower
  • Features a squared port style flange that is a 1/4″ thick
  • Primary tubes have a 1-5/8″ diameter and the collector has a 3″ diameter
  • Has an all-steel construction with a black painted finish for added corrosion resistance
Continue Shopping SKU: 741-1185 Categories: ,

Description

Header Tube Type: Full-length
Finish: Temporary Paint
Flange Style: Standard
Primary Tube Diameter: 1-5/8″
Material Type: Steel
Color: Black
Weld-Up: No
Exhaust Port Shape: Square
Collector Diameter: 3 Inch
Collector Length: 8.75″
Flange Thickness: .25″
Port Height: 1.45″
Port Width: 1.48″
Drivers Side Dimension A: 23.75″
Drivers Side Dimension B: 4.13″
Drivers Side Dimension C: 19.13″
Passenger Side Dimension A: 14.00″
Passenger Side Dimension B: 2.38″
Passenger Side Dimension C: 30.75″
Hardware Included: Yes
Gasket(s) Included: Yes
Sold in Quantity: Pair

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Additional information

Weight 40 lbs
Dimensions 40 × 25 × 15 in
