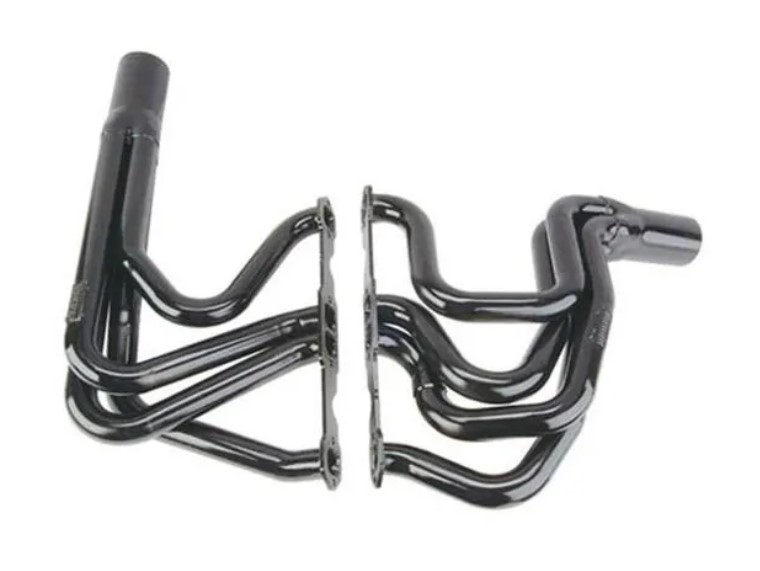

Header SBC IMCA 1 3/4″ – 1 7/8″

$349.95

  • Ideal for your IMCA modified with a S/B Chevy engine
  • Features stepped 1-3/4″ to 1-7/8″ primary tube
  • Collector has a 3-1/2″ diameter and measures 9″ in length
  • 1/4″ flange has a squared style port design
Continue Shopping SKU: 741-1186V Categories: ,

Description

Header Tube Type: Full-length
Finish: Temporary Paint
Flange Style: Standard
Primary Tube Diameter: 1-3/4″
Material Type: Steel
Color: Black
Weld-Up: No
Exhaust Port Shape: Square
Collector Diameter: 3-1/2 Inch
Collector Length: 8.75″
Flange Thickness: .25″
Port Height: 1.47″
Port Width: 1.68″
Drivers Side Dimension A: 23.60″
Drivers Side Dimension B: 5.50″
Drivers Side Dimension C: 20.50″
Passenger Side Dimension A: 14.30″
Passenger Side Dimension C: 30.00″
Hardware Included: Yes
Gasket(s) Included: Yes
Sold in Quantity: Pair

Info

These Schoenfeld long primary high velocity modified headers are the “baddest” headers for your IMCA modified with a S/B Chevy engine. Stepped 1-3/4″ to 1-7/8″ primary tubes and 3-1/2″ x 9″ collector. For standard port heads. Dirtworks style.

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Additional information

Weight 40 lbs
Dimensions 40 × 25 × 15 in
