Header SBC IMCA 1 3/4" Long PRI

Header SBC IMCA 1 3/4″ Long PRI

$289.95

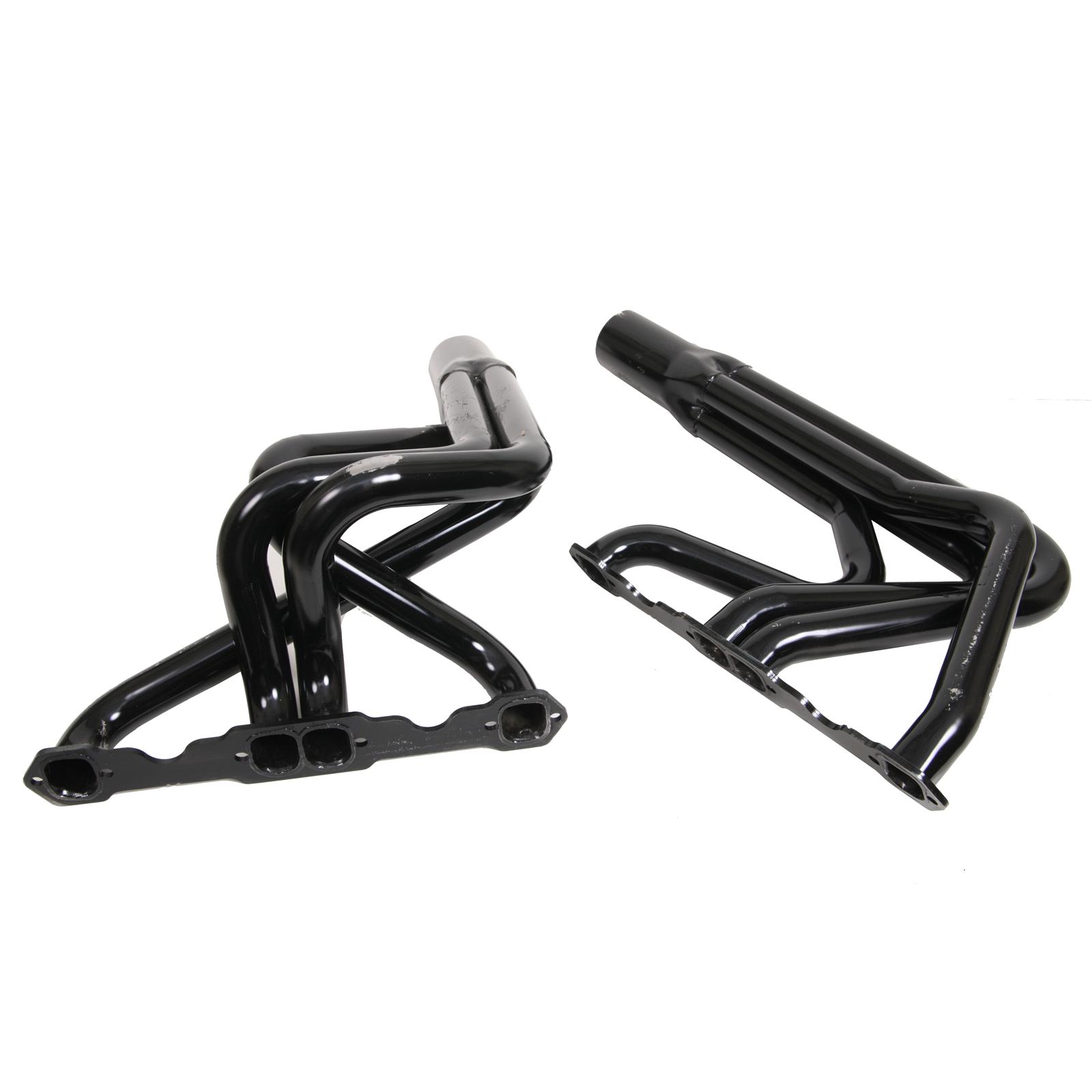

  • Headers are specifically made to fit the Chevy Small Block V8 engines
  • Full steel construction
  • Long style headers have a 1-3/4″ tube that meet at a 3-1/2″ collector
  • Features a D-port style flange that is 1/4″ thick
  • Port is 1.69″ high and has a width measuring 1.5″
Continue Shopping SKU: 741-1186 Categories: ,

Description

Header Tube Type: Long Tube
Finish: Painted
Flange Style: D Port
Primary Tube Diameter: 1-3/4″
Material Type: Steel
Color: Black
Collector Diameter: 3-1/2 Inch
Collector Length: 7.75″
Flange Thickness: .25″
Port Height: 1.69″
Port Width: 1.50″
Drivers Side Dimension A: 22.85″
Drivers Side Dimension B: 4.25″
Drivers Side Dimension C: 19.”
Passenger Side Dimension A: 14.05″
Passenger Side Dimension B: 2.50″
Passenger Side Dimension C: 29.75″
Hardware Included: Yes
Gasket(s) Included: Yes
Sold in Quantity: Pair

Item Details

Painted black, not coated. Not step design

Notes

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Additional information

Weight 40 lbs
Dimensions 40 × 25 × 15 in
