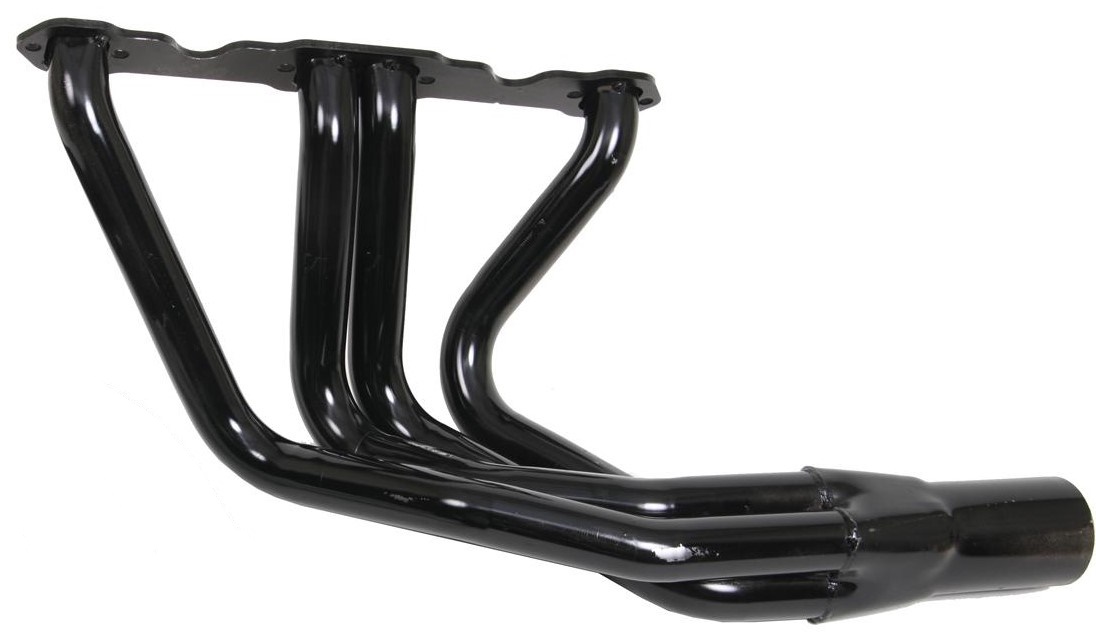

Header SBC IMCA 1 5/8″ Short PRI Crate Flange Left Only

$110.00

Headers, Circle Track, IMCA Modified, Mid, 4-1 One-Piece, 1 5/8 in. Primaries, 3 in. Collector, 604 Crate Engine, Chevy. Left Side Only

Continue Shopping SKU: 741-1105CML Categories: ,

Description

Header Style: Circle Track 4-1 one-piece

Header Material: Steel

Header Finish: Temporary non-high temperature paint

Weld-Up: No

Primary Tube Outside Diameter (in): 1 5/8 in.

Flange Style: Standard

Collector Attachment: Slip fit

Collector Diameter: 3.000 in.

Collector Reducers Included: No

Tuned: No

Flange Thickness (in): 1/4 in.

Bolts/Studs Included: Yes

Gaskets Included: Yes

Quantity: Left Side Only

Notes: Fits 604 crate engines. Fits BMS, Dirtworks, GRT, Harris, Hoffman, Jet Racing and Larry Shaw chassis models.



If you’re racing an open front-wheel car, then Schoenfeld IMCA Modified mid-length primary headers are for you. Their headers are quality-built steel pieces that are available for several applications and include bolts and gaskets to complete the job. Why spend more coin than you need to? Schoenfeld IMCA Modified mid-length headers offer get-the-job-done power and performance at the right price.

Special warning regarding Schoenfeld painted headers only. The paint on these headers is not designed as a final finish; it is designed to protect the headers after the manufacturing process and during shipping. This paint will not withstand the high heat associated with engine break-in, nor will it withstand the heat cycles associated with any type of driving. It is recommended that this protective coating be stripped, and a high heat paint or coating designed for use on headers be applied.

Additional information

Weight 35 lbs
Dimensions 35 × 24 × 12 in
