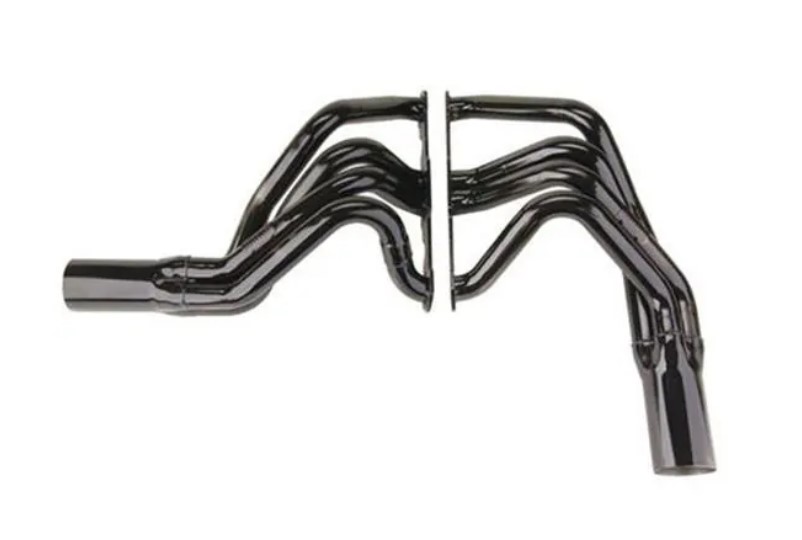

Header SBC 1 3/4″ Short PRI

$299.95

  • Specifically designed for the Small Block Chevy V8
  • Works with MS, Dirtworks, GRT, Harris, Hoffman, Jet, Larry Shaw and Speedway Motors cars
  • Collectors have a 3-1/2″ diameter and are 8″ long
  • Features an all steel construction with a black painted finish for enhanced corrosion protection
  • Flange has a 1/4″ thick and has a squared style port
Continue Shopping SKU: 741-1106 Categories: ,

Description

Header Tube Type: Mid-Length
Finish: Temporary Paint
Flange Style: Standard
Primary Tube Diameter: 1-3/4″
Material Type: Steel
Color: Black
Weld-Up: No
Exhaust Port Shape: Square
Collector Diameter: 3-1/2 Inch
Collector Length: 8″
Flange Thickness: .25″
Port Height: 1.67″
Port Width: 1.48″
Drivers Side Dimension A: 23.00″
Drivers Side Dimension B: 6.25″
Drivers Side Dimension C: 18.50″
Passenger Side Dimension A: 15.50″
Passenger Side Dimension B: 4.75″
Passenger Side Dimension C: 28.50″
Hardware Included: Yes
Gasket(s) Included: Yes
Sold in Quantity: Pair

Info

These mid length modified headers are for BMS, Dirtworks, GRT, Harris, Hoffman, Jet, Larry Shaw and Speedway Motors cars. S/B Chevy, 1-3/4″ tube and 3-1/2″ collectors. Schoenfeld 1106.

Note

The paint on Schoenfeld headers protects them after the manufacturing process and during shipping – it is not designed as a final finish. It is recommended that this protective paint be stripped and a high heat coating/paint designed for use on headers.

Additional information

Weight 40 lbs
Dimensions 40 × 25 × 15 in
